This is a single-output, fixed 5V DC-DC buck converter with a maximum output current of 3A. It operates from an input voltage range of 4.5V to 40V, offering up to 80% efficiency. The component features a TO-220 package for through-hole mounting and a wide operating temperature range of -40°C to 125°C. It is RoHS compliant and designed for power management applications.
PackageTO-220
Voltage5V
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2596T-5.0/NOPB technical specifications.
General
Package/Case
TO-220
Efficiency
80%
Height
8.64mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Mount
Through Hole
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
40V
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2596
Thickness
4.572mm
Voltage
5V
Width
4.57mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2596T-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2596T-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

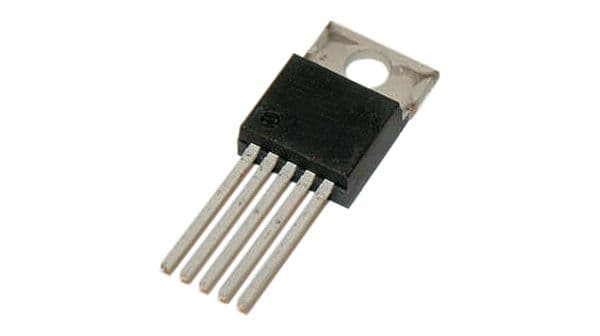

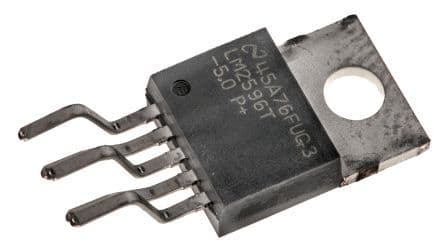

Product Images
