3A, 5V fixed output step-down voltage regulator, operating from a 4.5V to 40V input range. This DC/DC controller features a 150kHz switching frequency and 80% efficiency, with a maximum output current of 3A. Packaged in a TO-263-7 surface-mount case, it operates across a temperature range of -40°C to 125°C.
PackageTO-263-7
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2599S-5.0/NOPB technical specifications.
General
Package/Case
TO-263-7
Efficiency
80%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
4.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2599S-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2599S-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

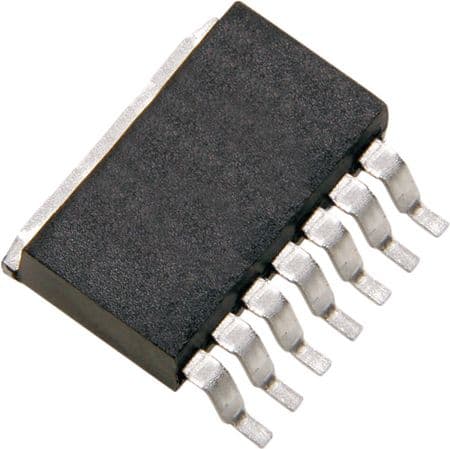

Product Images
