High efficiency switching regulator with a 1.5A output current and a fixed 3.3V output voltage. Features a wide input voltage range from 4V to 14V and achieves up to 97% efficiency. Operates across a broad temperature range of -40°C to 125°C. Surface mountable in a 16-TSSOP package, this lead-free component includes UVLO protection.
PackageTSSOP
Current Rating1.5A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2651MTC-3.3/NOPB technical specifications.
General
Package/Case
TSSOP
Current Rating
1.5A
Efficiency
97%
Features
UVLO
Height
1mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
14V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Output Voltage
3.3V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Operating Supply Voltage
14V
Output Current
1.5A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
92
Packaging
Rail/Tube
Quiescent Current
1.6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2651
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2651MTC-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2651MTC-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

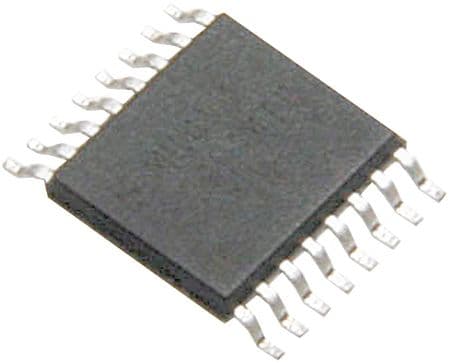

Product Images
