1A, 3.3V fixed output step-down regulator with a 260kHz switching frequency. Features a wide 6.5V to 40V input voltage range and a 1A maximum output current. Packaged in an 8-SOIC surface-mount case with dimensions of 4.9mm (L) x 3.91mm (W) x 1.75mm (H). Operates across a -40°C to 125°C temperature range.
Frequency260kHz
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2672M-3.3 technical specifications.
General
Package/Case
SOIC
Frequency
260kHz
Height
1.75mm
Lead Free
Contains Lead
Length
4.9mm
Max Input Voltage
40V
Min Input Voltage
6.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Voltage
40V
Min Supply Voltage
6.5V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
95
Packaging
Rail/Tube
Quiescent Current
2.5mA
Reach SVHC Compliant
No
RoHS Compliant
No
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
1.58mm
Width
3.91mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2672M-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2672M-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

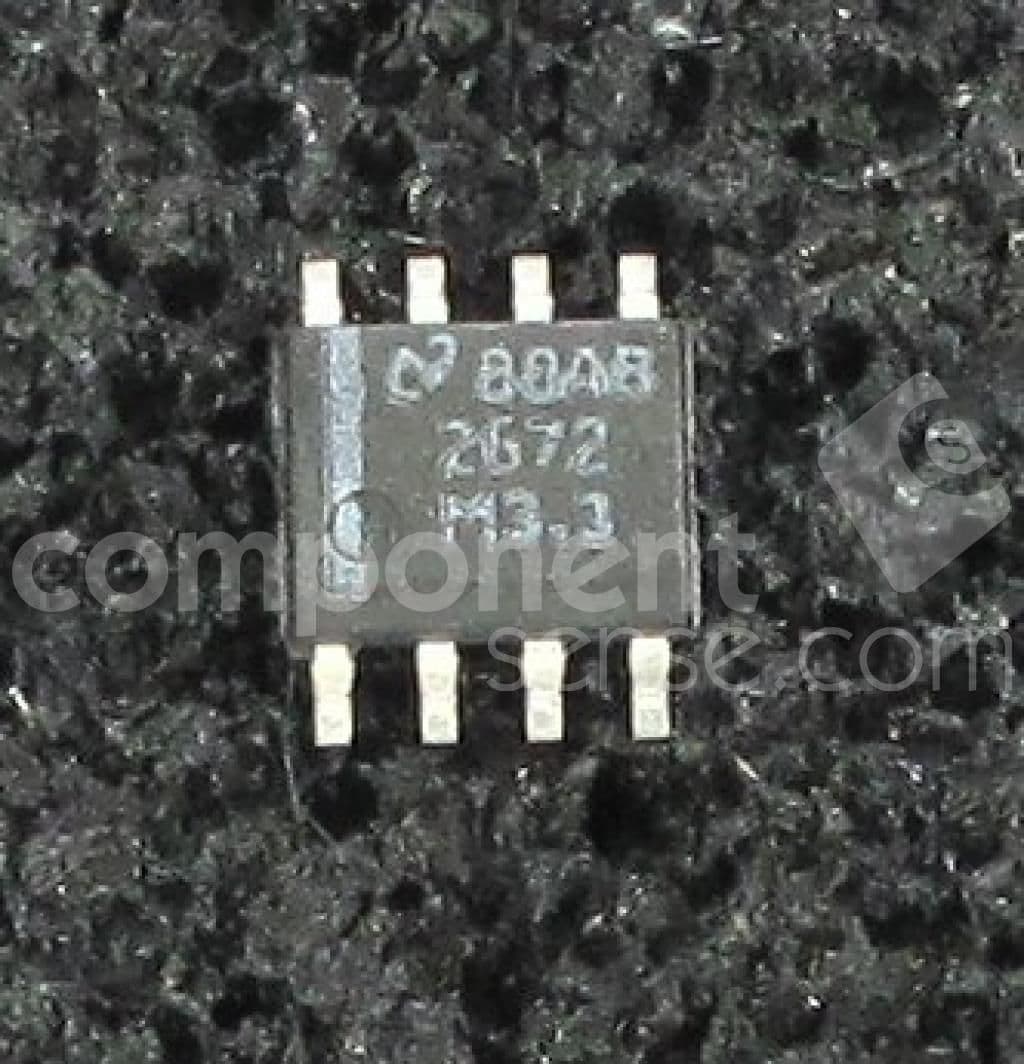

Product Images
