1A fixed 5V output step-down regulator with a wide 8V to 40V input voltage range. Features 90% efficiency and a low 2.5mA quiescent current. Surface mountable in an 8-SOIC package with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height. Operates across a -40°C to 125°C temperature range.
PackageSOIC N
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2672M-5.0/NOPB technical specifications.
General
Package/Case
SOIC N
Efficiency
90%
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Operating Supply Voltage
40V
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
95
Packaging
Rail/Tube
Quiescent Current
2.5mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM2672
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2672M-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2672M-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

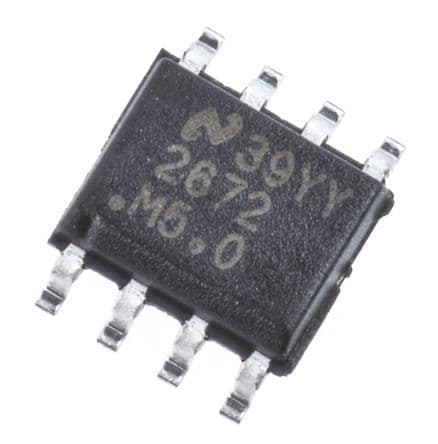

Product Images
