LM2673S-5.0

5V 3A Buck Converter IC, 8-40V In, TO-263-7

3A, 5V fixed output buck converter with adjustable current limit. Features an 8V to 40V input voltage range and operates from -40°C to 125°C. Surface mount TO-263-7 package with a 4.57mm height, 10.16mm length, and 8.64mm width. Single positive output configuration.

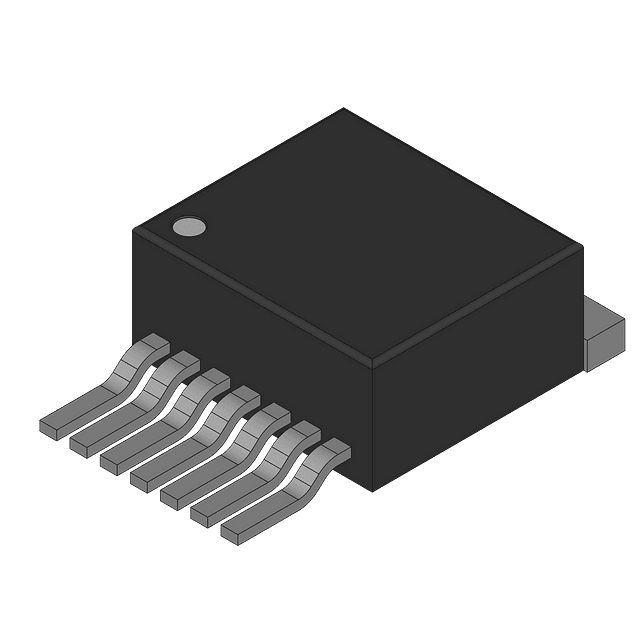

PackageTO-263-7

MountingSurface Mount

Quick Jump:

Technical Specifications

Texas Instruments LM2673S-5.0 technical specifications.

General

Package/Case	TO-263-7
Height	4.57mm
Lead Free	Contains Lead
Length	10.16mm
Max Input Voltage	40V
Min Input Voltage	8V
Max Operating Temperature	125°C
Min Operating Temperature	-40°C
Max Output Current	3A
Min Output Voltage	5V
Mount	Surface Mount
Nominal Output Voltage	5V
Number of Outputs	1
Operating Supply Voltage	40V
Output Configuration	Positive
Output Current	3A
Output Type	Fixed
Output Voltage	5V
Package Quantity	45
Packaging	Rail/Tube
Quiescent Current	4.2mA
Radiation Hardening	No
Reach SVHC Compliant	No
RoHS Compliant	No
Series	SIMPLE SWITCHER®
Synchronous Rectifier	No
Width	8.64mm
