Texas Instruments
LM2673SX-3.3/NOPB
8V to 40V, 3A SIMPLE SWITCHER® buck converter with adjustable current limit 7-DDPAK/TO-263 -40 to 125
PackageTO-263-7
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2673SX-3.3/NOPB technical specifications.
General
Package/Case
TO-263-7
Efficiency
86%
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Min Output Voltage
3.3V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
500
Packaging
Tape and Reel
Quiescent Current
4.2mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2673SX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2673SX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

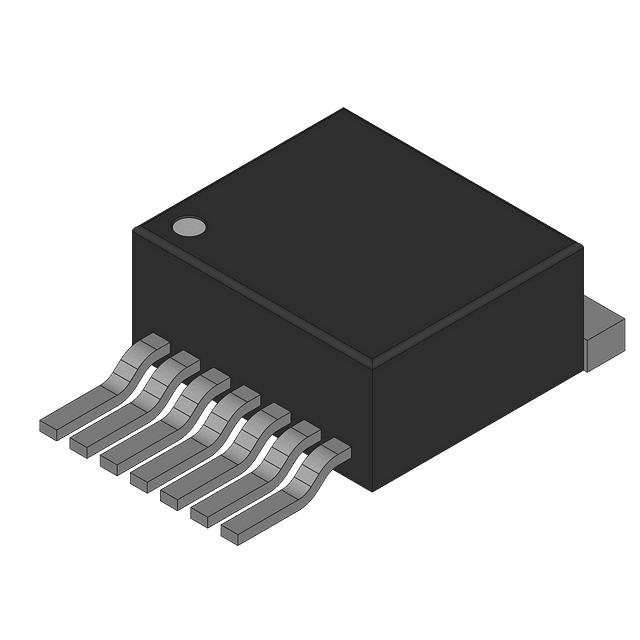

Product Images
