Step-down DC-DC controller with a 3.3V fixed output voltage and 1A maximum output current. Operates from an 8V to 40V input voltage range, achieving 86% efficiency. Features a single output channel and a surface-mount SOIC package. Designed for a wide operating temperature range of -40°C to 125°C.
PackageSOIC
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2675M-3.3/NOPB technical specifications.
General
Package/Case
SOIC
Efficiency
86%
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Channels
1
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
3.3V
Packaging
Rail/Tube
Quiescent Current
2.5mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
1.58mm
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2675M-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2675M-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

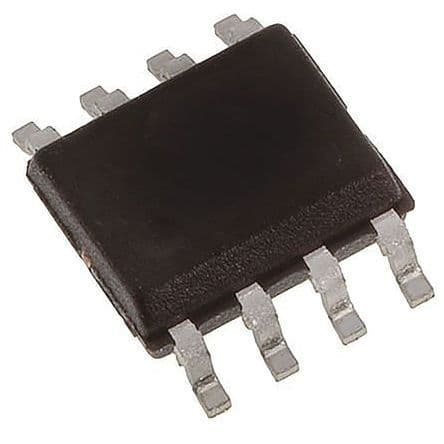

Product Images
