Step-down DC-DC converter with a 5V fixed output voltage and 3A maximum output current. Features an 8V to 40V input voltage range and 88% efficiency at 260kHz switching frequency. Packaged in a TO-263-7 surface-mount case, this positive output regulator operates from -40°C to 125°C.
Frequency260kHz
PackageTO-263-7
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2676S-5.0/NOPB technical specifications.
General
Package/Case
TO-263-7
Efficiency
88%
Frequency
260kHz
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
5.1V
Min Output Voltage
5V
Max Supply Voltage
40V
Min Supply Voltage
8V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Configuration
Positive
Output Current
3A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
4.2mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Termination
SMD/SMT
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2676S-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2676S-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

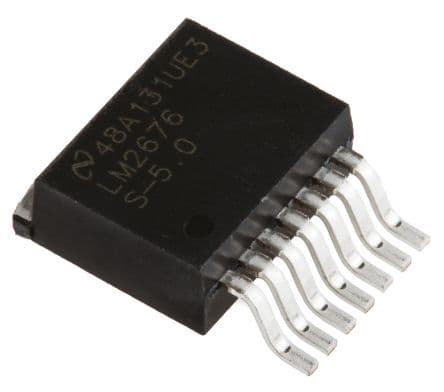

Product Images
