3A adjustable step-down regulator, featuring an 8V to 40V input voltage range and a maximum output voltage of 37V. This power management IC offers up to 88% efficiency and a low quiescent current of 4.2mA. Packaged in a TO-263-7 surface-mount case, it operates across a wide temperature range of -40°C to 125°C. Designed for low component count, this regulator is RoHS compliant.
PackageTO-263-7
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2676SX-ADJ/NOPB technical specifications.
General
Package/Case
TO-263-7
Efficiency
88%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
37V
Min Output Voltage
1.2V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
40V
Output Current
3A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
500
Packaging
Tape and Reel
Quiescent Current
4.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2676SX-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2676SX-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

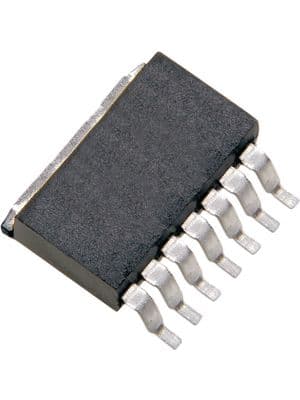

Product Images
