5A, 5V fixed output buck converter with 8V to 40V input voltage range. Features 84% efficiency and a TO-263 surface mount package. Operating temperature range from -40°C to 125°C. Single channel, positive output configuration.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2678S-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Efficiency
84%
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Min Output Voltage
5V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Channels
1
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
5A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Quiescent Current
4.2mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Thickness
4.44mm
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2678S-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2678S-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

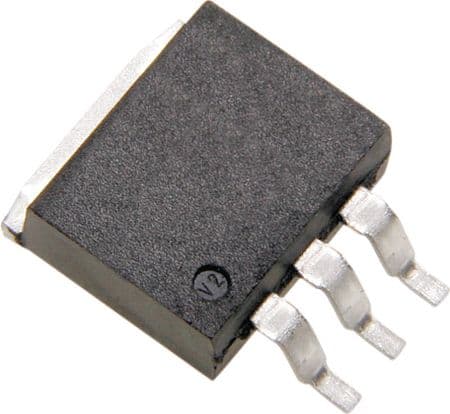

Product Images
