Texas Instruments
LM2678SDX-ADJ/NOPB
8V to 40V, 5A SIMPLE SWITCHER® buck converter with high efficiency 14-VSON -40 to 125
PackageVSON
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2678SDX-ADJ/NOPB technical specifications.
General
Package/Case
VSON
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
8V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
5A
Max Output Voltage
37V
Min Output Voltage
1.21V
Mount
Surface Mount
Number of Outputs
1
Operating Supply Voltage
40V
Output Configuration
Positive
Output Current
5A
Output Type
Adjustable
Output Voltage
37V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
4.2mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
SIMPLE SWITCHER®
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2678SDX-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2678SDX-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

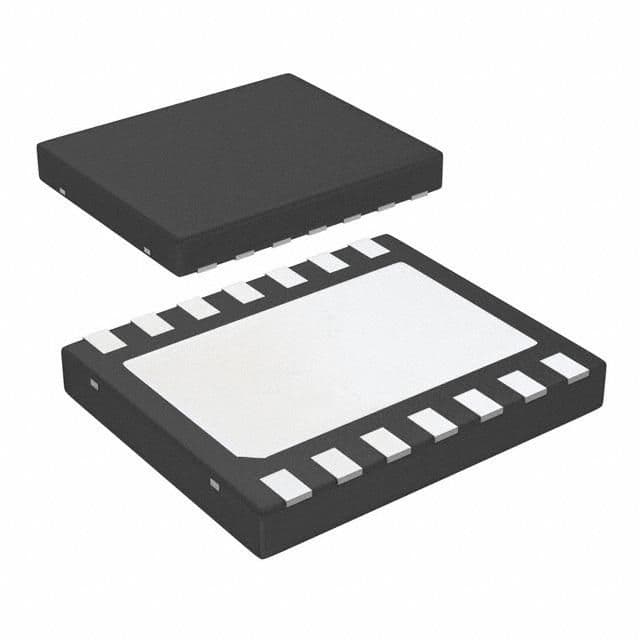

Product Images
