Texas Instruments
LM26LVQISD-130/NOPB
Automotive grade, ±3°C 1.6V-5.5V capable, factory preset trip point temperature switch 6-WSON -40 to 150
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM26LVQISD-130/NOPB technical specifications.
General
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 7mA |
| Mount | Surface Mount |
| Operating Supply Current | 8uA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 8uA |
| RoHS Compliant | Yes |
| Series | LM26LV-Q1 |
| Switching Temperature | 130°C |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM26LVQISD-130/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM26LVQISD-130/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

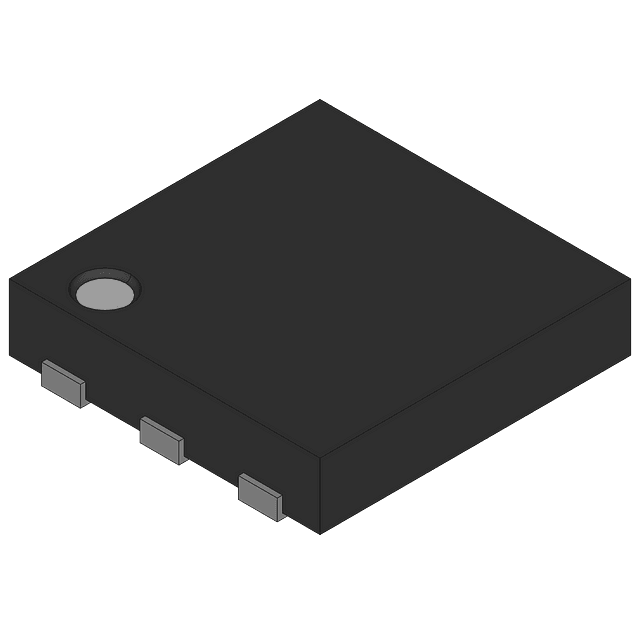

Product Images
