Texas Instruments
LM27342MY/NOPB
2A - Wide Input Range Buck Regulator with Frequency Synchronization 10-HVSSOP -40 to 125
PackageHVSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM27342MY/NOPB technical specifications.
General
Package/Case
HVSSOP
Efficiency
90%
Lead Free
Lead Free
Max Input Voltage
20V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
2A
Max Output Voltage
18V
Min Output Voltage
1V
Mount
Surface Mount
Number of Outputs
1
Output Current
2A
Output Type
Adjustable
Output Voltage
18V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
2.4mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LM27342
Synchronous Rectifier
No
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM27342MY/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM27342MY/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

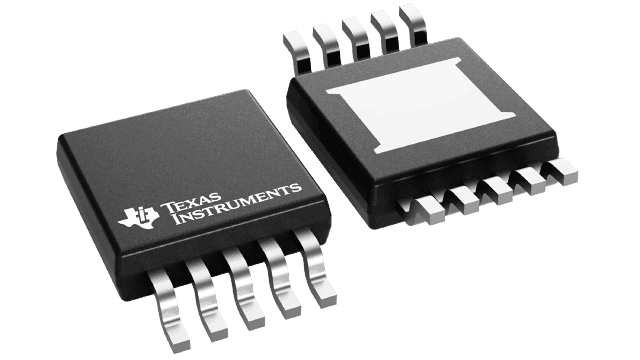

Product Images
