1A step-down DC/DC converter with adjustable output voltage from 800mV to 18V. Features a wide input voltage range of 3V to 20V and a maximum output current of 1A. Operates at a switching frequency of 660kHz with up to 90% efficiency. Packaged in a compact SOT-23-6 surface-mount case, measuring 2.9mm x 1.6mm x 1.1mm. Suitable for operation across a temperature range of -40°C to 125°C.
Frequency660kHz
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2734YMK technical specifications.
General
Package/Case
SOT-23-6
Efficiency
90%
Frequency
660kHz
Height
1.1mm
Lead Free
Contains Lead
Length
2.9mm
Max Input Voltage
20V
Min Input Voltage
3V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
18V
Min Output Voltage
800mV
Max Supply Voltage
20V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Outputs
1
Output Configuration
Positive
Output Current
1A
Output Type
Adjustable
Output Voltage
18V
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
2.1mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Synchronous Rectifier
No
Termination
SMD/SMT
Thickness
870um
Width
1.6mm
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2734YMK Datasheet
Download the complete datasheet for Texas Instruments LM2734YMK to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

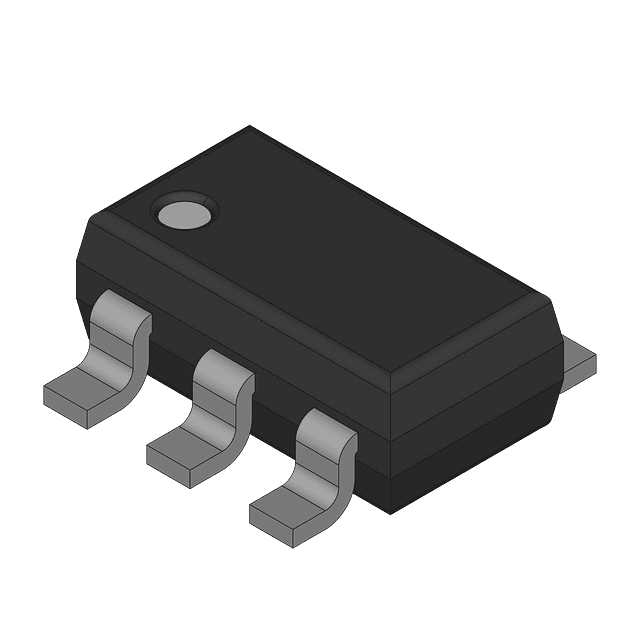

Product Images
