Texas Instruments
LM2734ZQMKE
IC 2.5 A SWITCHING REGULATOR, 3600 kHz SWITCHING FREQ-MAX, PDSO6, SOT-23, 6 PIN, Switching Regulator or Controller
Frequency3MHz
PackageSOT-23
Quick Jump:
Technical Specifications
Texas Instruments LM2734ZQMKE technical specifications.
General
| Package/Case | SOT-23 |
| Frequency | 3MHz |
| Max Input Voltage | 20V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1A |
| Max Output Voltage | 18V |
| Min Output Voltage | 800mV |
| Max Supply Voltage | 20V |
| Min Supply Voltage | 3V |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Voltage | 18V |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Termination | SMD/SMT |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM2734ZQMKE Datasheet
Download the complete datasheet for Texas Instruments LM2734ZQMKE to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

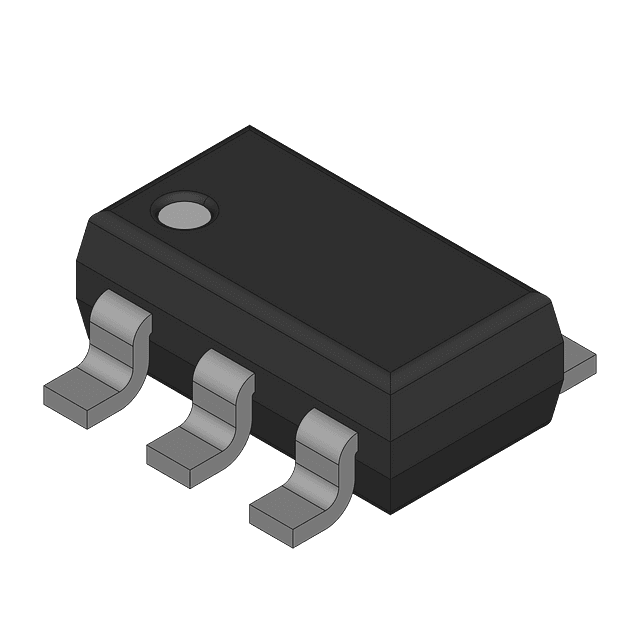

Product Images
