Texas Instruments
LM27951SDX/NOPB
White LED adaptive 1.5X/1X switched capacitor current driver with 2.8V-5.5V input voltage range 14-WSON -40 to 85
Frequency750kHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM27951SDX/NOPB technical specifications.
General
| Dimming | PWM |
| Frequency | 750kHz |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Nominal Supply Current | 1.5mA |
| Number of Channels | 4 |
| Number of Outputs | 4 |
| Number of Segments | 4 |
| Output Current per Channel | 30mA |
| Output Voltage | 3.9V |
| Package Quantity | 4500 |
| Packaging | Tape and Reel |
| Quiescent Current | 1.5mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Topology | Boost |
| Touchscreen | Capacitive |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM27951SDX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM27951SDX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

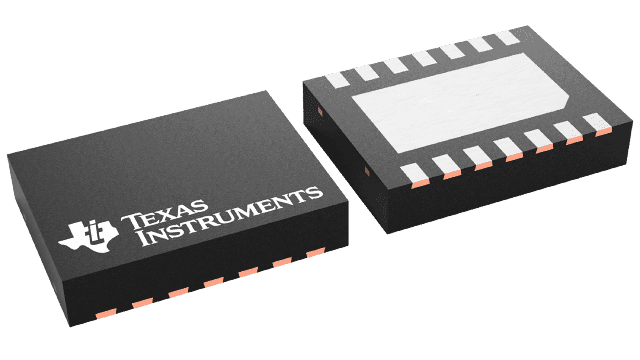

Product Images
