Precision voltage reference IC offering a fixed 1.235V output with a tight tolerance of 1%. This shunt reference operates with a low cathode current of 10µA and supports a maximum output current of 20mA. Packaged in a 3-pin TO-92 configuration, it functions across an industrial temperature range of -40°C to 85°C. The component is RoHS compliant and supplied in bulk packaging.
PackageTO-92
Current20mA
Quick Jump:
Technical Specifications
Texas Instruments LM285LP-1-2 technical specifications.
General
Package/Case
TO-92
Cathode Current
10uA
Height
3.68mm
Lead Free
Lead Free
Length
4.83mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
20mA
Max Output Voltage
1.235V
Min Output Voltage
1.223V
Number of Channels
1
Output Current
20mA
Output Voltage
1.235V
Package Quantity
1000
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
1.235V
RoHS Compliant
Yes
Supply Current
20mA
Tolerance
1%
Weight
0.00752oz
Width
3.43mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM285LP-1-2 Datasheet
Download the complete datasheet for Texas Instruments LM285LP-1-2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

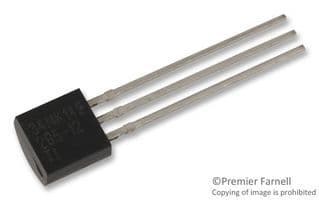

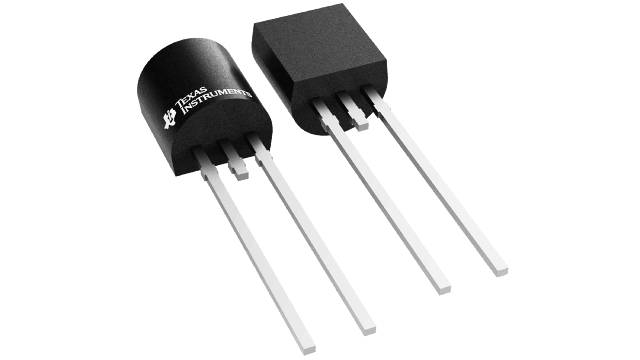

Product Images
