Dual differential comparator, automotive grade, featuring 2 channels and 2 elements. Operates with a wide supply voltage range from 1V to 36V, with a maximum dual supply voltage of 18V. Offers a fast response time of 0.3µs and a high voltage gain of 100dB. Input bias current is 250nA with an input offset voltage of 7mV. Surface mountable in an 8-TSSOP package, this component is RoHS compliant and operates from -40°C to 125°C.
PackageTSSOP
Current1mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2903PWR technical specifications.
General
| Package/Case | TSSOP |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 1V |
| Max Input Current | 250nA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 500uA |
| Max Supply Voltage | 36V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Compatibility | CMOS |
| Output Current | 20mA |
| Output Current per Channel | 6mA |
| Output Type | TTL |
| Package Quantity | 2000 |
| Packaging | Tape and Reel |
| Quiescent Current | 2.5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 0.3us |
| RoHS Compliant | Yes |
| Supply Current | 1mA |
| Technology | BIPOLAR |
| Termination | SMD/SMT |
| Thickness | 1mm |
| Voltage Gain | 100dB |
| Weight | 0.001376oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM2903PWR Datasheet
Download the complete datasheet for Texas Instruments LM2903PWR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

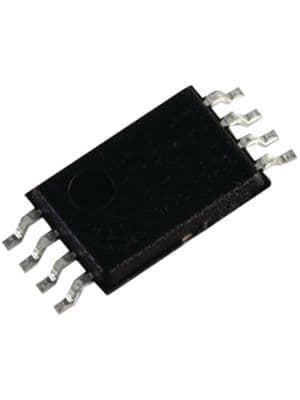

Product Images
