Dual-channel, general-purpose operational amplifier featuring a 700kHz gain bandwidth product and 0.3V/µs slew rate. This bipolar IC offers a wide operating supply voltage range from 3V to 26V, with a dual supply range of 1.5V to 9V. Designed for through-hole mounting in an 8-pin PDIP package, it operates from -40°C to 125°C and provides 30mA output current per channel. Key specifications include 50dB CMRR, 7mV input offset voltage, and 250nA input bias current.
PackagePDIP
Current1.2mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2904P technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
700kHz
Package/Case
PDIP
Common Mode Rejection Ratio
50dB
Dual Supply Voltage
9V
Gain Bandwidth Product
700kHz
Height
4.57mm
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Length
9.81mm
Max Dual Supply Voltage
13V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
26V
Min Supply Voltage
3V
Mount
Through Hole
Number of Amplifiers
2
Number of Channels
2
Number of Circuits
2
Number of Elements
2
Operating Supply Current
1mA
Operating Supply Voltage
13V
Output Current
30mA
Output Current per Channel
30mA
Package Quantity
50
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.3V/µs
Supply Current
1.2mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
700kHz
Voltage Gain
100dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2904P Datasheet
Download the complete datasheet for Texas Instruments LM2904P to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

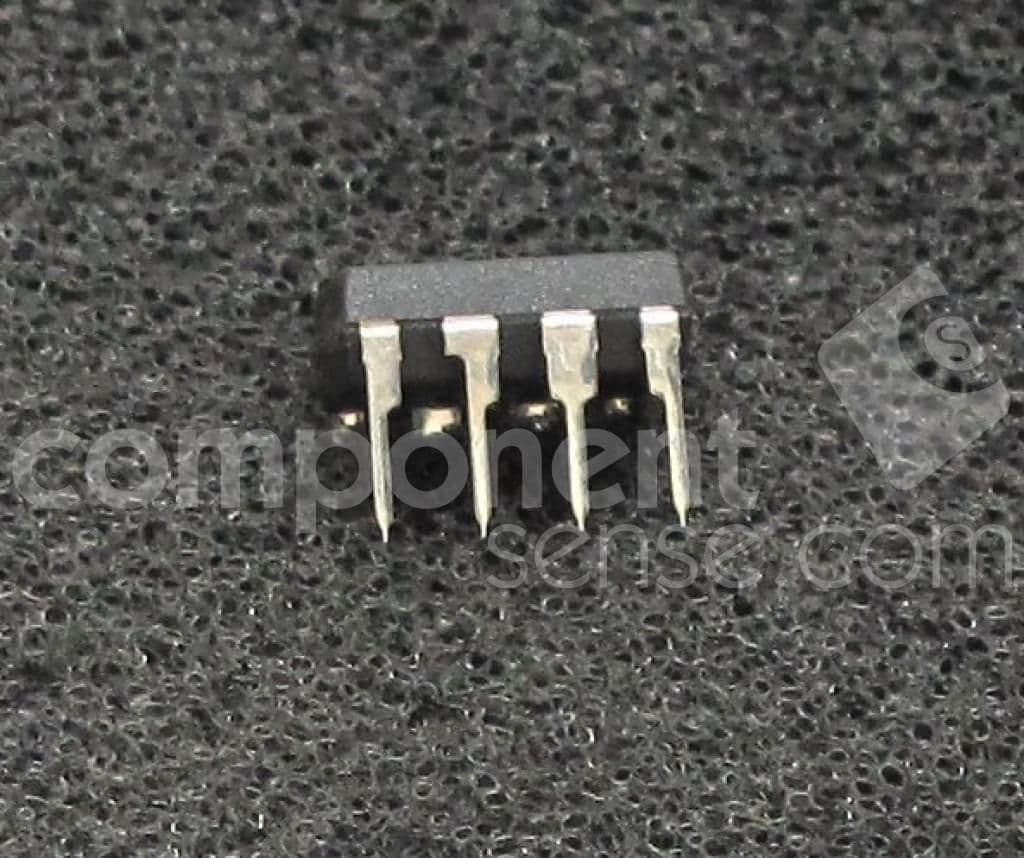

Product Images
