Adjustable positive linear voltage regulator (LDO) with a 0.6V dropout voltage. Features a maximum input voltage of 33V and an adjustable output voltage range from 3V to 24V, with a maximum output current of 100mA. This 5-pin TO-220 package component offers a 55dB Power Supply Rejection Ratio (PSRR) and operates across a temperature range of -40°C to 85°C. Mounting is through-hole, and the device contains lead.
PackageTO-220-5
Current Rating100mA
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2931CT technical specifications.
General
Package/Case
TO-220-5
Current Rating
100mA
Height
8.89mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
33V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Max Output Voltage
24V
Min Output Voltage
3V
Max Supply Current
15mA
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
100mA
Output Type
Adjustable
Output Voltage
24V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
55dB
Quiescent Current
1mA
Reference Voltage
1.26V
RoHS Compliant
No
Width
4.7mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2931CT Datasheet
Download the complete datasheet for Texas Instruments LM2931CT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

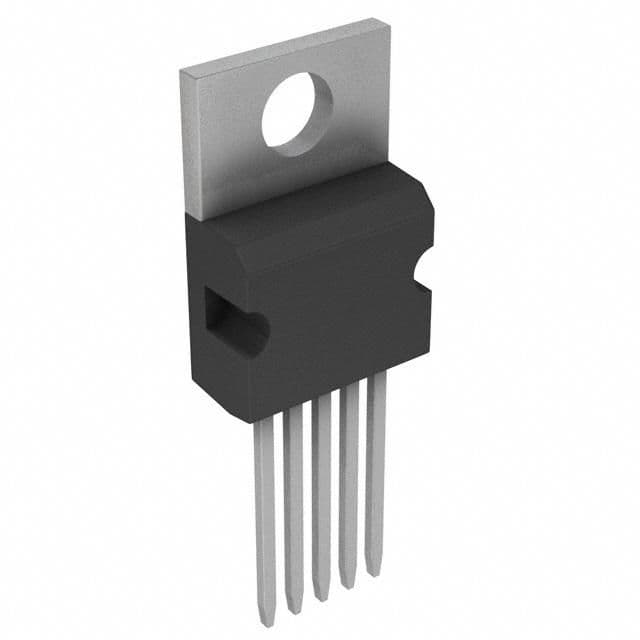

Product Images
