High-performance, positive fixed output voltage linear voltage regulator with a 5V nominal output. Features a 100mA maximum output current and a low dropout voltage of 300mV. Operates with a maximum input voltage of 26V and a minimum of 0V, suitable for a wide temperature range of -40°C to 85°C. Packaged in an 8-SOIC surface mount case with dimensions of 4.9mm length, 3.9mm width, and 1.45mm height. RoHS compliant and lead-free.
PackageSOIC
Current Rating100mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2931M-5.0/NOPB technical specifications.
General
Package/Case
SOIC
Current Rating
100mA
Dropout Voltage
300mV
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
100mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
100mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
95
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
1mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2931M-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2931M-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

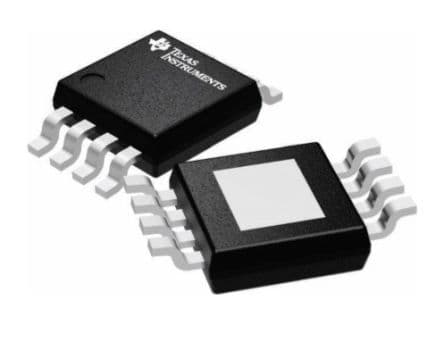

Product Images
