5V fixed output, positive polarity, low-dropout linear voltage regulator with 50mA maximum output current. Features a low quiescent current of 15µA and a low dropout voltage of 200mV. Operates with a wide input voltage range from 4V to 60V, offering 2% accuracy. Housed in an 8-SOIC surface mount package, suitable for operation between -40°C and 125°C. Includes reverse voltage protection.
PackageSOIC
Voltage5V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2936HVMA-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
SOIC
Dropout Voltage
200mV
Height
1.45mm
Lead Free
Lead Free
Length
4.9mm
Max Input Voltage
60V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Output Current
50mA
Output Type
Fixed
Output Voltage
5V
Package Quantity
95
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Voltage
5V
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2936HVMA-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2936HVMA-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

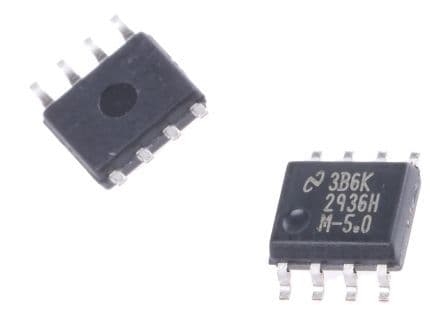

Product Images
