Low-dropout voltage regulator offering a fixed 3.3V output with 50mA maximum output current. Features a low quiescent current of 20µA and a dropout voltage of 200mV. Operates with an input voltage range from 5.5V to 40V and supports a maximum input voltage of 40V. This positive polarity regulator is housed in an 8-VSSOP package, suitable for surface mounting. Accuracy is rated at 2%, with an operating temperature range of -40°C to 125°C. Includes reverse voltage protection.
PackageMSOP
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2936MM-3.3 technical specifications.
General
Accuracy
2%
Package/Case
MSOP
Dropout Voltage
200mV
Lead Free
Contains Lead
Max Input Voltage
40V
Min Input Voltage
5.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Supply Voltage
40V
Min Supply Voltage
4V
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Termination
SMD/SMT
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2936MM-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2936MM-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

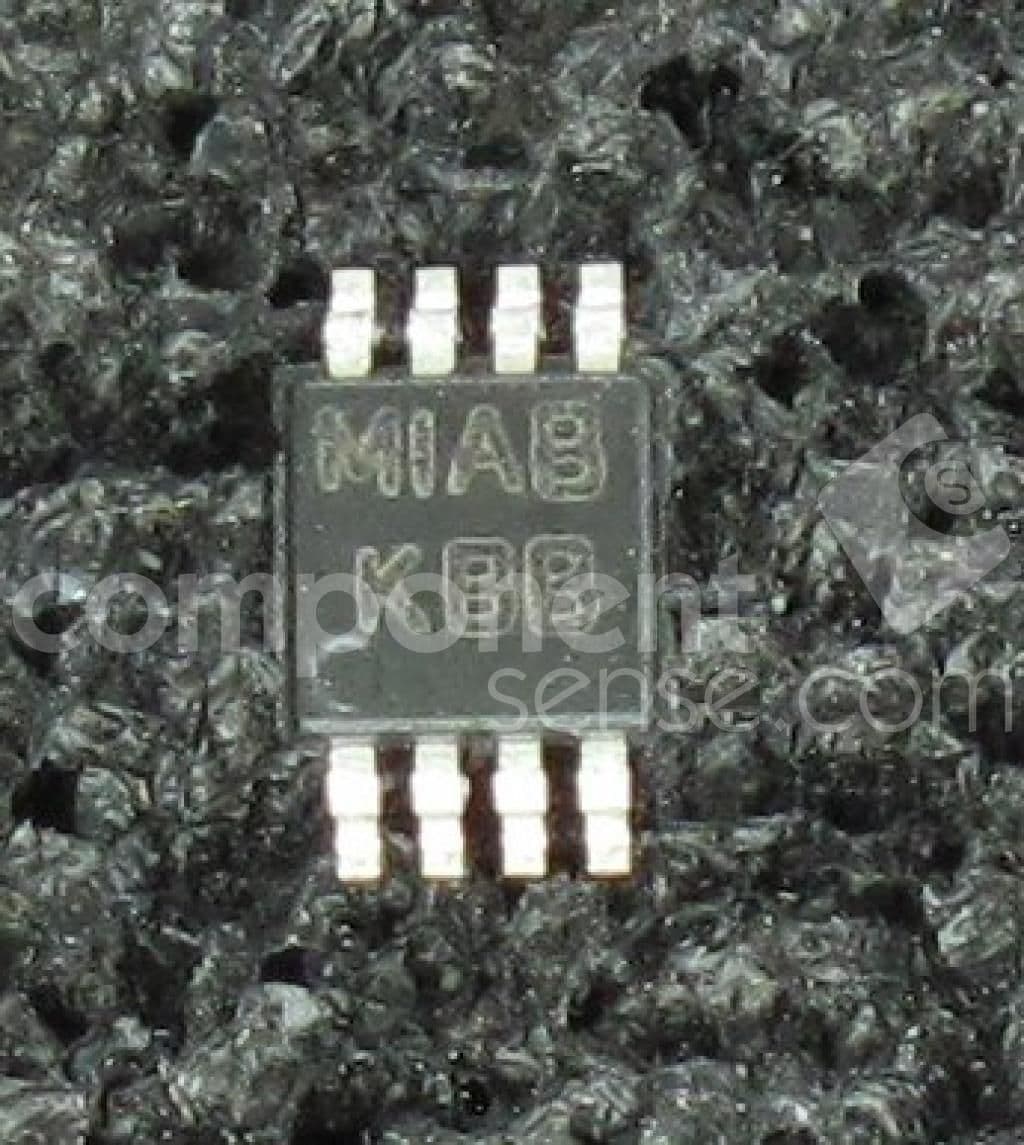

Product Images
