Low-dropout voltage regulator, 3.3V fixed output, 50mA output current, 2% output voltage accuracy. Features 200mV dropout voltage, 40V maximum input voltage, and 2.5mA maximum supply current. Operates from -40°C to 125°C in a 4-SOT-223 surface mount package. Includes reverse voltage protection and 60dB PSRR.
PackageSOT-223
Current Rating50mA
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2936MP-3.3/NOPB technical specifications.
General
Accuracy
2%
Package/Case
SOT-223
Current Rating
50mA
Dropout Voltage
200mV
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Max Output Voltage
3.3V
Max Supply Current
2.5mA
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
2%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
20uA
Radiation Hardening
No
Reach SVHC Compliant
No
Termination
SMD/SMT
Thickness
1.6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2936MP-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2936MP-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

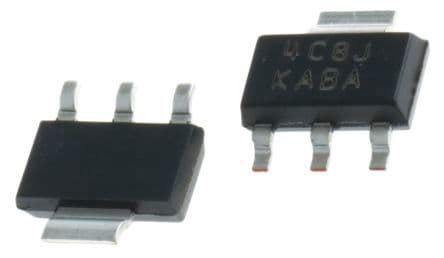

Product Images
