PackageTO-261-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2936QMPX-3.3/NOPB technical specifications.
General
Accuracy
3%
Package/Case
TO-261-4
Dropout Voltage
200mV
Lead Free
Lead Free
Max Input Voltage
40V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Min Output Voltage
3.3V
Max Supply Current
2.5mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
50mA
Output Type
Fixed
Output Voltage
3.3V
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
60dB
Quiescent Current
15uA
RoHS Compliant
Yes
Series
Automotive, AEC-Q100
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2936QMPX-3.3/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2936QMPX-3.3/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

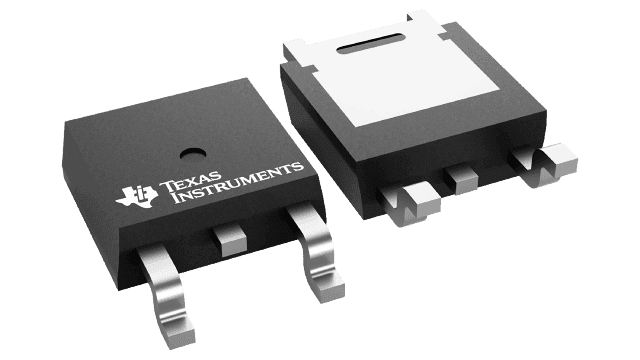

Product Images
