5V fixed output, positive polarity, low-dropout linear voltage regulator with 50mA maximum output current. Features a low quiescent current of 15µA and a dropout voltage of 200mV. Operates with an input voltage range of 4V to 40V and maintains 2% output voltage accuracy across a temperature range of -40°C to 125°C. Packaged in a TO-92 through-hole mount.
PackageTO-92
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2936Z-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-92
Dropout Voltage
200mV
Height
5.2mm
Lead Free
Lead Free
Length
5.2mm
Max Input Voltage
40V
Min Input Voltage
4V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
50mA
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
50mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Packaging
Bulk
Polarity
Positive
Quiescent Current
15uA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2936Z-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2936Z-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

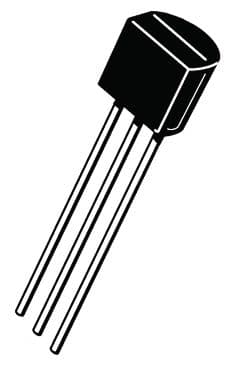

Product Images
