High-performance, positive fixed 3.3V output linear voltage regulator with 500mA output current capability. Features a wide 4.75V to 26V input voltage range and 5% output voltage accuracy. Designed for surface mount applications in a TO-263 package, operating from -40°C to 125°C. Offers high power supply rejection ratio (PSRR) and a quiescent current of 10mA.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2937ES-3.3 technical specifications.
General
Accuracy
5%
Package/Case
TO-263
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
4.75V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Output Voltage
3.3V
Min Output Voltage
3.3V
Max Supply Current
1.25A
Mount
Surface Mount
Nominal Output Voltage
3.3V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
3.3V
Output Voltage Accuracy
5%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2937ES-3.3 Datasheet
Download the complete datasheet for Texas Instruments LM2937ES-3.3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

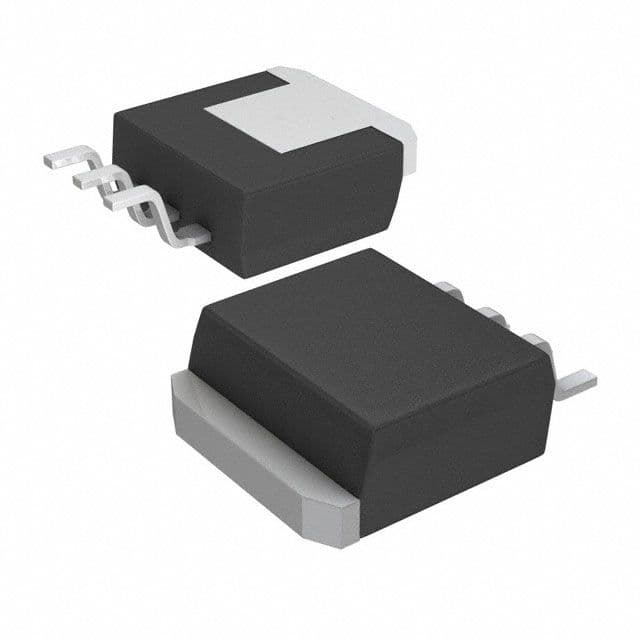

Product Images
