5V fixed output, positive voltage regulator with 500mA output current capability. Features a maximum input voltage of 26V and operates across a wide temperature range from -40°C to 125°C. This surface mount device offers high power supply rejection ratio (PSRR) and a low dropout voltage. Packaged in a TO-263, it is suitable for applications requiring stable voltage regulation.
PackageTO-263
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2937ES-5.0 technical specifications.
General
Package/Case
TO-263
Lead Free
Contains Lead
Max Input Voltage
26V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Min Output Voltage
5V
Max Supply Current
20mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
5%
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
2mA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2937ES-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2937ES-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

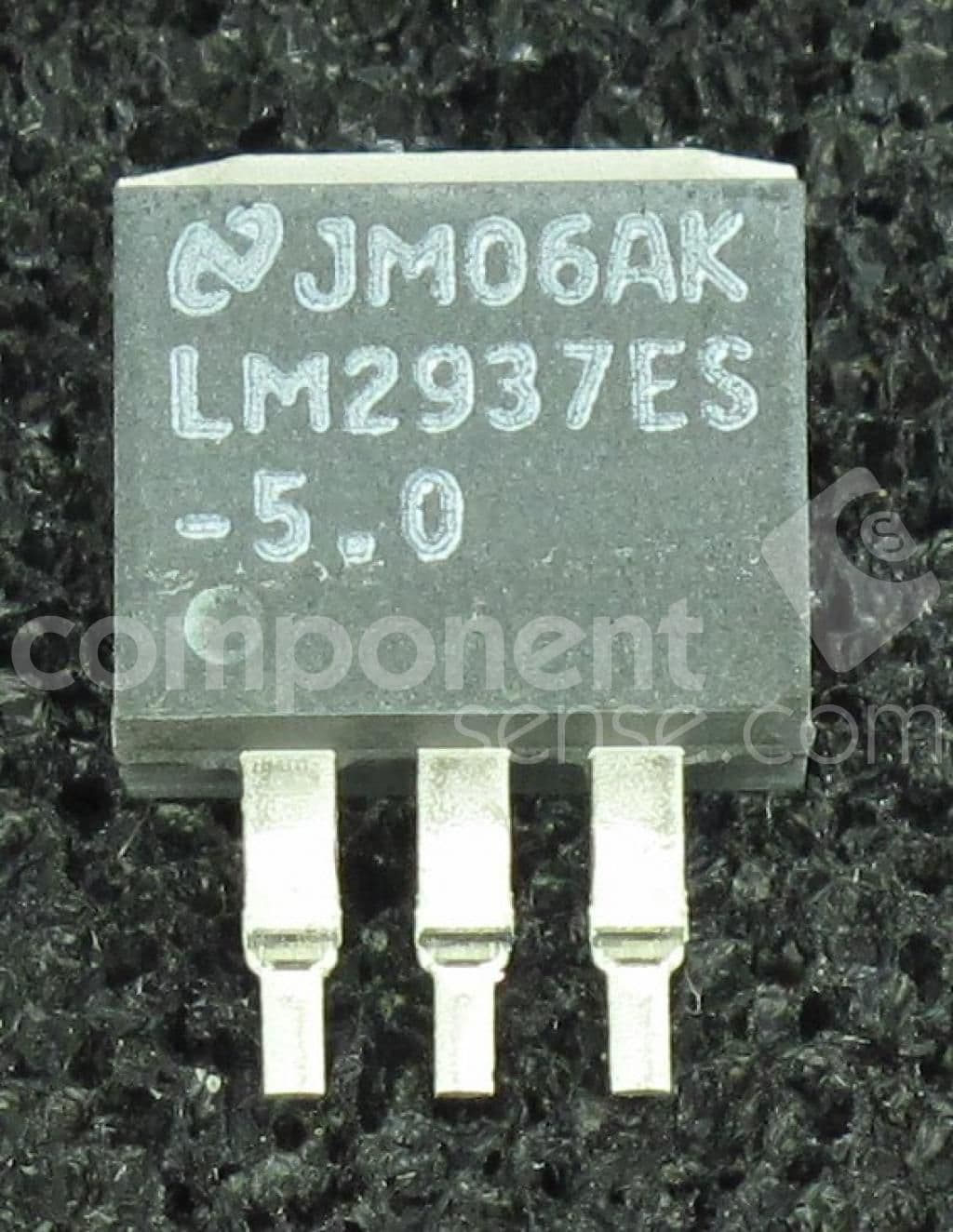

Product Images
