Positive fixed output voltage regulator, 2.5V nominal output voltage with 5% accuracy. Features a maximum output current of 400mA and a dropout voltage of 500mV. Operates with an input voltage range of 4.75V to 26V. Packaged in a 4-SOT-223 surface mount configuration, suitable for operation between -40°C and 85°C.
PackageSOT-223
Voltage2.5V
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2937IMP-2.5 technical specifications.
General
Accuracy
5%
Package/Case
SOT-223
Dropout Voltage
500mV
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
4.75V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
400mA
Max Output Voltage
2.5V
Max Supply Current
1.25A
Max Supply Voltage
26V
Min Supply Voltage
4.75V
Mount
Surface Mount
Nominal Output Voltage
2.5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
400mA
Output Type
Fixed
Output Voltage
2.5V
Output Voltage Accuracy
5%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Voltage
2.5V
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2937IMP-2.5 Datasheet
Download the complete datasheet for Texas Instruments LM2937IMP-2.5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

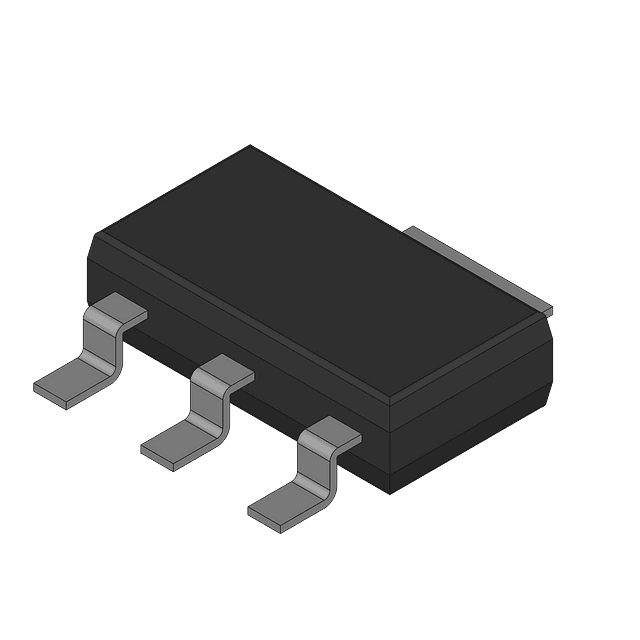

Product Images
