500mA, 5V fixed output positive linear voltage regulator with 1V dropout voltage and 26V maximum input voltage. Features high Power Supply Rejection Ratio (PSRR) and operates across a -40°C to 85°C temperature range. Packaged in a 4-SOT-223 surface-mount case, this RoHS compliant component offers 5% output voltage accuracy and is supplied on tape and reel.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2937IMP-5.0/NOPB technical specifications.
General
Accuracy
5%
Package/Case
SOT-223
Dropout Voltage
1V
Height
1.6mm
Lead Free
Lead Free
Length
6.5mm
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
500mA
Max Supply Current
20mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
500mA
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
5%
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
10mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
3.56mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2937IMP-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2937IMP-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

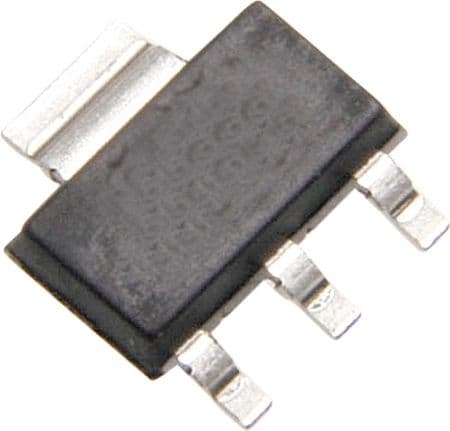

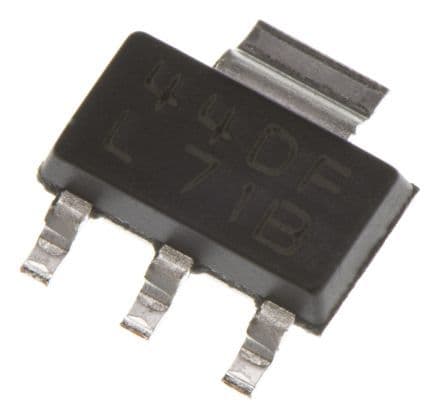

Product Images
