Positive fixed 5V output linear voltage regulator, offering 1A output current with a 500mV dropout voltage. Features a maximum input voltage of 26V and a low quiescent current of 15mA. Designed for surface mount applications in a TO-263 package, operating from -40°C to 85°C.
PackageTO-263
Voltage5V
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2940CS-5.0 technical specifications.
General
Package/Case
TO-263
Current Rating
1A
Dropout Voltage
500mV
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
26V
Min Input Voltage
6.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
5V
Max Supply Voltage
26V
Min Supply Voltage
6.25V
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15mA
Reach SVHC Compliant
No
RoHS Compliant
No
Voltage
5V
Width
8.64mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2940CS-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2940CS-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

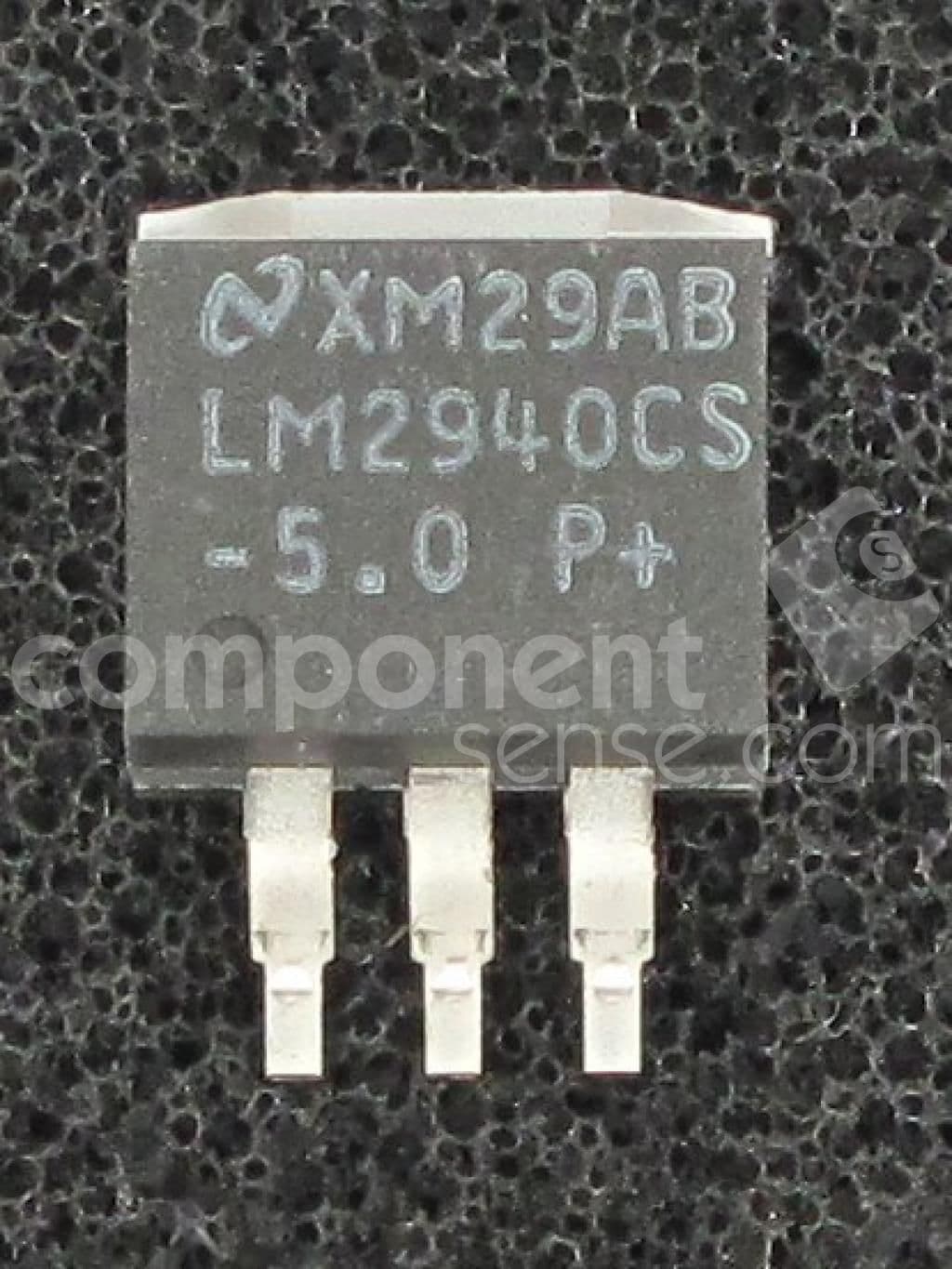

Product Images
