Positive fixed output voltage regulator, offering a 5V nominal output with a 1A maximum output current. Features a low dropout voltage of 500mV and a high Power Supply Rejection Ratio (PSRR) of 64dB. Operates with a maximum input voltage of 26V and a minimum input voltage of 6.25V. This surface mount component is housed in a TO-263 package, with dimensions of 10.16mm length, 8.64mm width, and 4.57mm height. Operating temperature range is -40°C to 85°C.
PackageTO-263
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940CS-5.0/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1A
Dropout Voltage
500mV
Height
4.57mm
Lead Free
Contains Lead
Length
10.16mm
Max Input Voltage
26V
Min Input Voltage
6.25V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
1A
Min Output Voltage
5V
Max Supply Current
15mA
Mount
Surface Mount
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
64dB
Quiescent Current
10mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
8.64mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2940CS-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2940CS-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

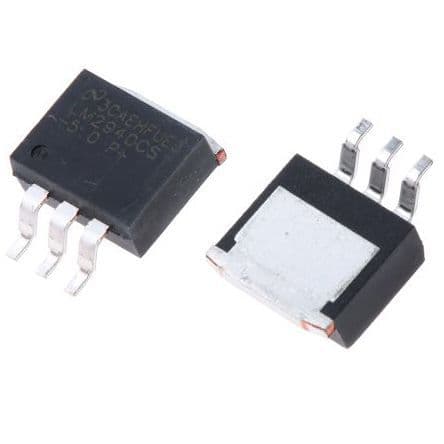

Product Images
