PackageTO-261-4
Current Rating1A
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940IMP-10 technical specifications.
General
Package/Case
TO-261-4
Current Rating
1A
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
11.5V
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Min Output Voltage
10V
Max Supply Current
15mA
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
10V
Package Quantity
1000
Packaging
Tape and Reel
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
63dB
Quiescent Current
10mA
Radiation Hardening
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LM2940IMP-10 Datasheet
Download the complete datasheet for Texas Instruments LM2940IMP-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

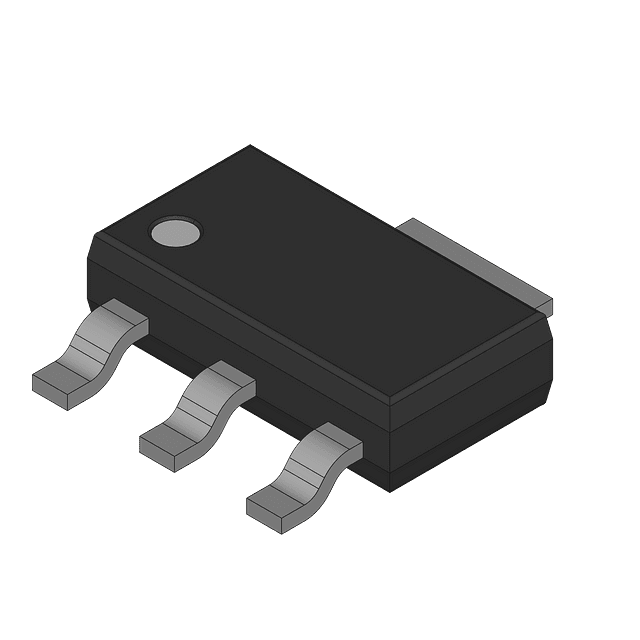

Product Images
