Texas Instruments
LM2940S-8.0/NOPB
1-A, 26-V, high-PSRR, low-dropout voltage regulator 3-DDPAK/TO-263 -40 to 125
PackageTO-263
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM2940S-8.0/NOPB technical specifications.
General
Package/Case
TO-263
Current Rating
1A
Dropout Voltage
500mV
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
8.24V
Min Output Voltage
7.76V
Max Supply Voltage
26V
Min Supply Voltage
9.4V
Mount
Surface Mount
Nominal Output Voltage
8V
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
8V
Quiescent Current
20mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
SMD/SMT
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2940S-8.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2940S-8.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

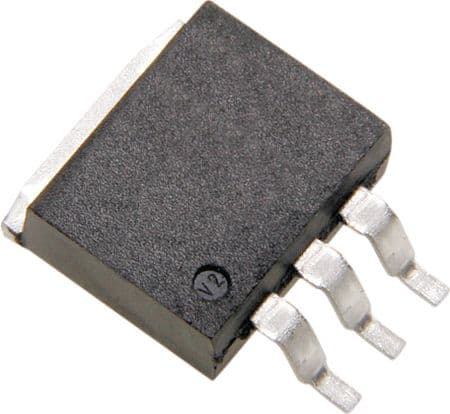

Product Images
