Positive fixed 5V output voltage linear voltage regulator with 1A maximum output current. Features a low dropout voltage of 500mV and a maximum input voltage of 26V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a TO-263-4 surface mount package, supplied on tape and reel.
PackageTO-263-4
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940SX-5.0 technical specifications.
General
Package/Case
TO-263-4
Dropout Voltage
500mV
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
6.25V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Surface Mount
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
1
Packaging
Tape and Reel
Polarity
Positive
Quiescent Current
15mA
RoHS Compliant
No
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2940SX-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2940SX-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

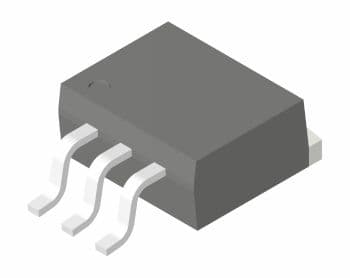

Product Images
