1-A, 12V positive fixed output linear voltage regulator with a maximum input voltage of 26V. Features a low dropout voltage of 500mV and a high Power Supply Rejection Ratio (PSRR). Operates within a temperature range of -40°C to 125°C and is housed in a TO-220-3 through-hole package.
PackageTO-220-3
Voltage12V
Current Rating1A
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM2940T-12.0 technical specifications.
General
Package/Case
TO-220-3
Current Rating
1A
Dropout Voltage
500mV
Lead Free
Contains Lead
Max Input Voltage
26V
Min Input Voltage
13.6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Max Output Voltage
12V
Max Supply Voltage
26V
Min Supply Voltage
13.6V
Mount
Through Hole
Nominal Output Voltage
12V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
12V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15mA
Reach SVHC Compliant
No
RoHS Compliant
No
Voltage
12V
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2940T-12.0 Datasheet
Download the complete datasheet for Texas Instruments LM2940T-12.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

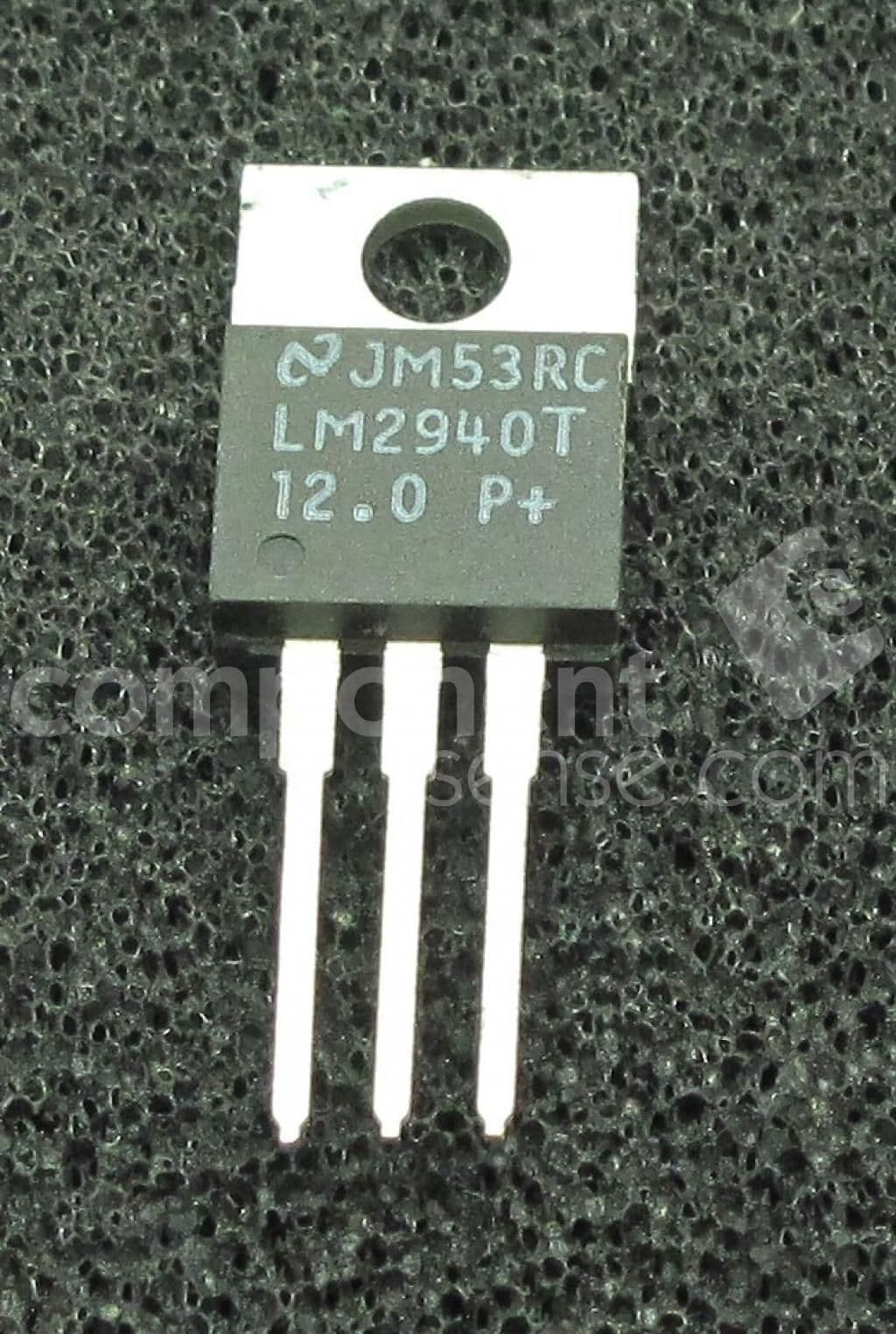

Product Images
