High-performance positive linear voltage regulator, offering a fixed 5V output with 1A maximum output current. Features a low dropout voltage of 500mV and a maximum input voltage of 26V. Operates across a wide temperature range from -40°C to 125°C. Packaged in a TO-220 through-hole mount for robust integration.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940T-5.0 technical specifications.
General
Package/Case
TO-220
Dropout Voltage
500mV
Height
4.7mm
Lead Free
Contains Lead
Length
14.986mm
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15mA
Reach SVHC Compliant
No
RoHS Compliant
No
Thickness
4.572mm
Width
10.16mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2940T-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM2940T-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

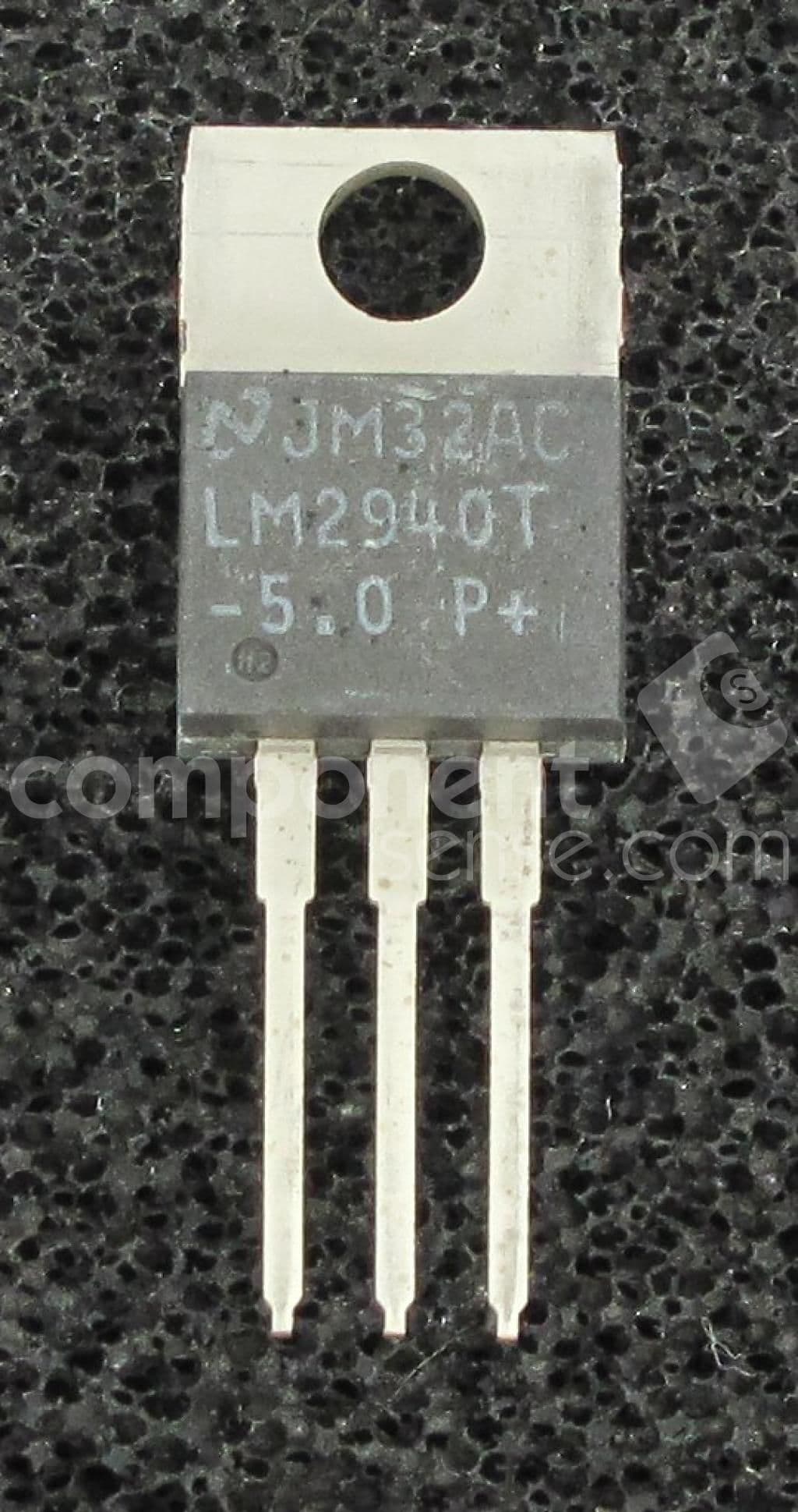

Product Images
