Positive fixed 9V output, 1A low-dropout linear voltage regulator with 500mV dropout voltage. Features a maximum input voltage of 26V and operates from 10.5V to 26V. This component offers a high power supply rejection ratio (PSRR) and a quiescent current of 15mA. Encased in a TO-220 package for through-hole mounting, it operates across a temperature range of -40°C to 125°C.
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM2940T-9.0/NOPB technical specifications.
General
Package/Case
TO-220
Dropout Voltage
500mV
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
26V
Min Input Voltage
10.5V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Through Hole
Nominal Output Voltage
9V
Number of Outputs
1
Output Current
1A
Output Type
Fixed
Output Voltage
9V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
15mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM2940T-9.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM2940T-9.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

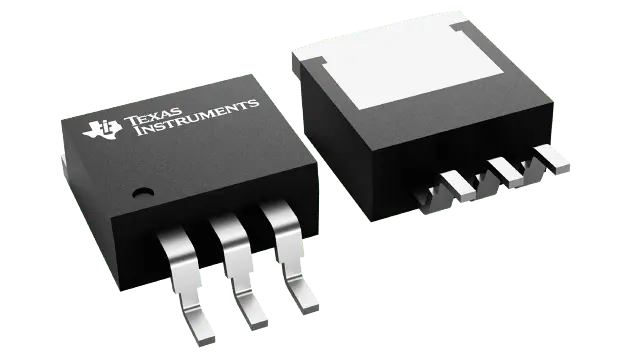

Product Images
