PackageTO-220-3
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments LM2990T-5.2 technical specifications.
General
| Accuracy | 5% |
| Package/Case | TO-220-3 |
| Lead Free | Contains Lead |
| Max Input Voltage | 300mV |
| Min Input Voltage | -26V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 1.8A |
| Min Output Voltage | -5.2V |
| Max Supply Current | 5mA |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Output Current | 1.8A |
| Output Type | Fixed |
| Output Voltage | -5.2V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 58dB |
| Quiescent Current | 5mA |
| RoHS Compliant | No |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LM2990T-5.2 Datasheet
Download the complete datasheet for Texas Instruments LM2990T-5.2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

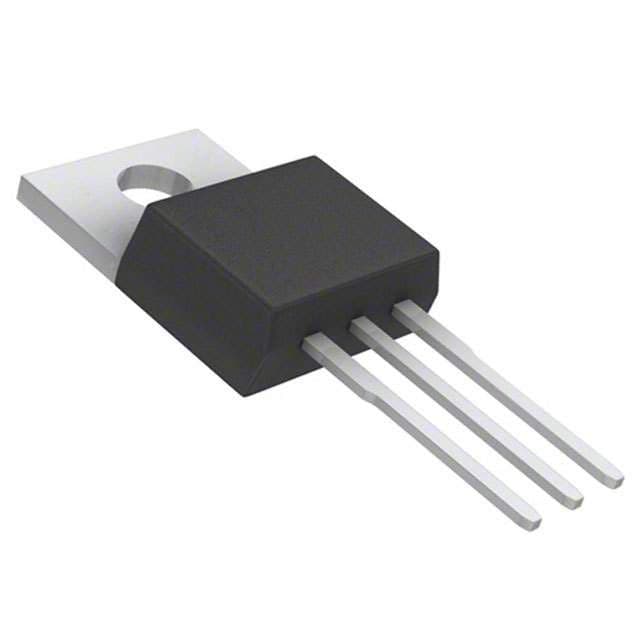

Product Images
