Adjustable negative linear voltage regulator, 1A output current, with a dropout voltage of 600mV. Features a minimum current limit of 1.5A and a maximum input voltage of 300mV, with a minimum input voltage of -26V. Operates across a temperature range of -40°C to 125°C. Packaged in a TO-220-5 through-hole mount configuration.
PackageTO-220-5
MountingThrough Hole
PolarityNegative
Quick Jump:
Technical Specifications
Texas Instruments LM2991T/LB03 technical specifications.
General
Package/Case
TO-220-5
Dropout Voltage
600mV
Height
4.7mm
Lead Free
Contains Lead
Length
14.986mm
Min Current Limit
1.5A
Max Input Voltage
300mV
Min Input Voltage
-26V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Adjustable
Output Voltage
-24V
Package Quantity
45
Packaging
Rail/Tube
Polarity
Negative
Quiescent Current
5mA
Reference Voltage
-1.186V
RoHS Compliant
No
Thickness
4.572mm
Width
10.16mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM2991T/LB03 Datasheet
Download the complete datasheet for Texas Instruments LM2991T/LB03 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

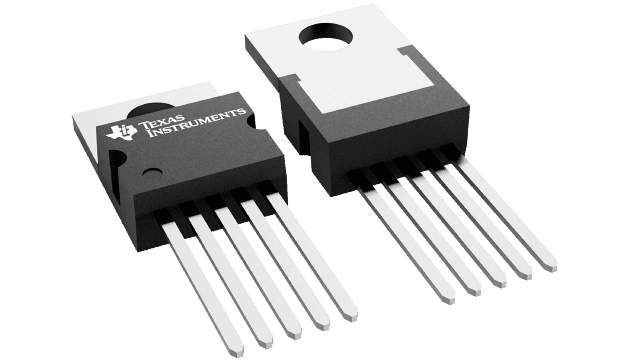

Product Images
