Quad operational amplifier featuring a 1MHz gain bandwidth product and 1MHz -3dB bandwidth. This general-purpose amplifier offers a 100dB voltage gain, 0.5V/µs slew rate, and 40mA output current per channel. It operates with a wide supply voltage range from 3V to 32V, supporting dual supplies from 1.5V to 16V. The component is housed in a 14-PDIP through-hole package, with a low operating supply current of 1.5mA. It boasts a 65dB common mode rejection ratio and power supply rejection ratio, with an input bias current of 45nA and input offset voltage of 2mV.
PackageDIP
Voltage32V
Current1.5mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM324N/NOPB technical specifications.
General
-3db Bandwidth
1MHz
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
DIP
Common Mode Rejection Ratio
65dB
Dual Supply Voltage
9V
Gain Bandwidth Product
1MHz
Height
3.3mm
Input Bias Current
45nA
Input Offset Voltage (Vos)
2mV
Lead Free
Lead Free
Length
19.05mm
Max Dual Supply Voltage
16V
Min Dual Supply Voltage
1.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Supply Voltage
32V
Min Supply Voltage
3V
Mount
Through Hole
Number of Amplifiers
4
Number of Circuits
4
Number of Elements
4
Operating Supply Current
1.5mA
Operating Supply Voltage
28V
Output Current per Channel
40mA
Packaging
Rail/Tube
Power Dissipation
1.13W
Power Supply Rejection Ratio (PSRR)
65dB
Reach SVHC Compliant
No
RoHS Compliant
Yes
Slew Rate
0.5V/µs
Supply Current
1.5mA
Technology
BIPOLAR
Unity Gain Bandwidth Product
1MHz
Voltage
32V
Voltage Gain
100dB
Width
6.35mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM324N/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM324N/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

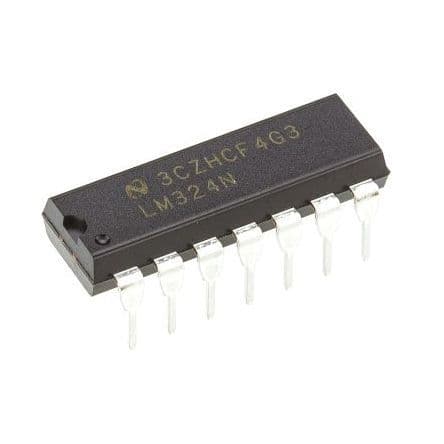

Product Images
