Positive fixed output voltage regulator, 5V nominal, with a maximum output current of 150mA. Features a low dropout voltage of 320mV and a maximum input voltage of 26V. This through-hole component is housed in a TO-220-3 package and operates within a temperature range of 0°C to 70°C. RoHS compliant.
PackageTO-220-3
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM330T-5.0/NOPB technical specifications.
General
Package/Case
TO-220-3
Dropout Voltage
320mV
Height
8.89mm
Lead Free
Lead Free
Length
10.16mm
Max Input Voltage
26V
Min Input Voltage
0V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
150mA
Max Output Voltage
5V
Max Supply Voltage
26V
Min Supply Voltage
6V
Mount
Through Hole
Nominal Output Voltage
5V
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
150mA
Output Type
Fixed
Output Voltage
5V
Packaging
Rail/Tube
Polarity
Positive
Quiescent Current
40mA
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM330T-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM330T-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

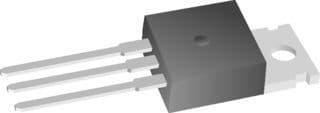

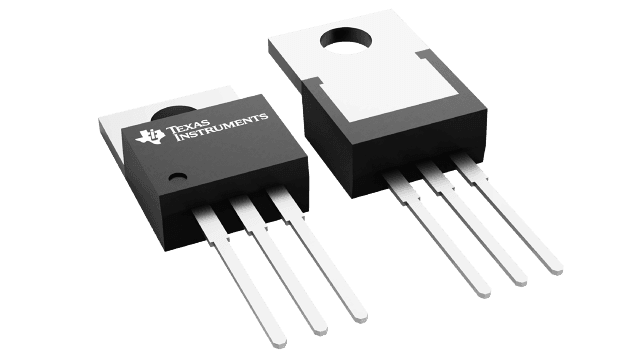

Product Images
