The LM335AH/NOPB is an analog temperature sensor with a package type of TO-46 and a through hole mount. It operates over a temperature range of -40°C to 100°C and has a quiescent current of 1mA. The sensor is lead free and RoHS compliant. It is available in a bag packaging and has a minimum supply voltage of 5V.
PackageTO-46
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM335AH/NOPB technical specifications.
General
| Package/Case | TO-46 |
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -40°C |
| Min Supply Voltage | 5V |
| Mount | Through Hole |
| Output Type | Analog Voltage, Analog |
| Packaging | Bag |
| Quiescent Current | 1mA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM335AH/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM335AH/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

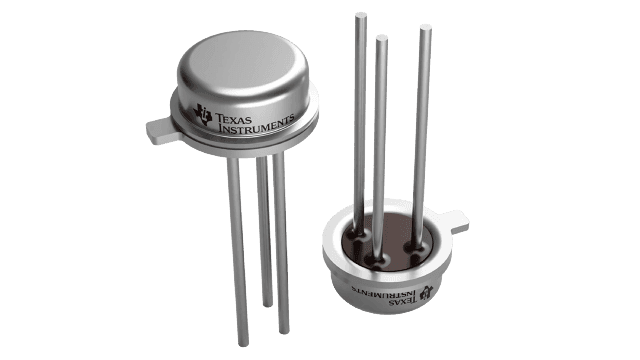

Product Images
