5V Shunt Voltage Reference, surface mountable in an 8-SOIC package. Features a fixed output voltage of 5V with a 2% tolerance, operating between -40°C and 85°C. Maximum output current is 10mA. Dimensions are 4.9mm length, 3.9mm width, and 1.45mm height.
PackageSOIC
Current Rating10A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM336BM-5.0/NOPB technical specifications.
General
Package/Case
SOIC
Current Rating
10A
Height
1.45mm
Lead Free
Contains Lead
Length
4.9mm
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Output Current
10mA
Max Output Voltage
5V
Min Output Voltage
4.9V
Mount
Surface Mount
Number of Channels
1
Output Current
10mA
Output Voltage
5V
Package Quantity
95
Packaging
Rail/Tube
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
5V
RoHS Compliant
Yes
Series
LM336-5.0
Tolerance
2%
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM336BM-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM336BM-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

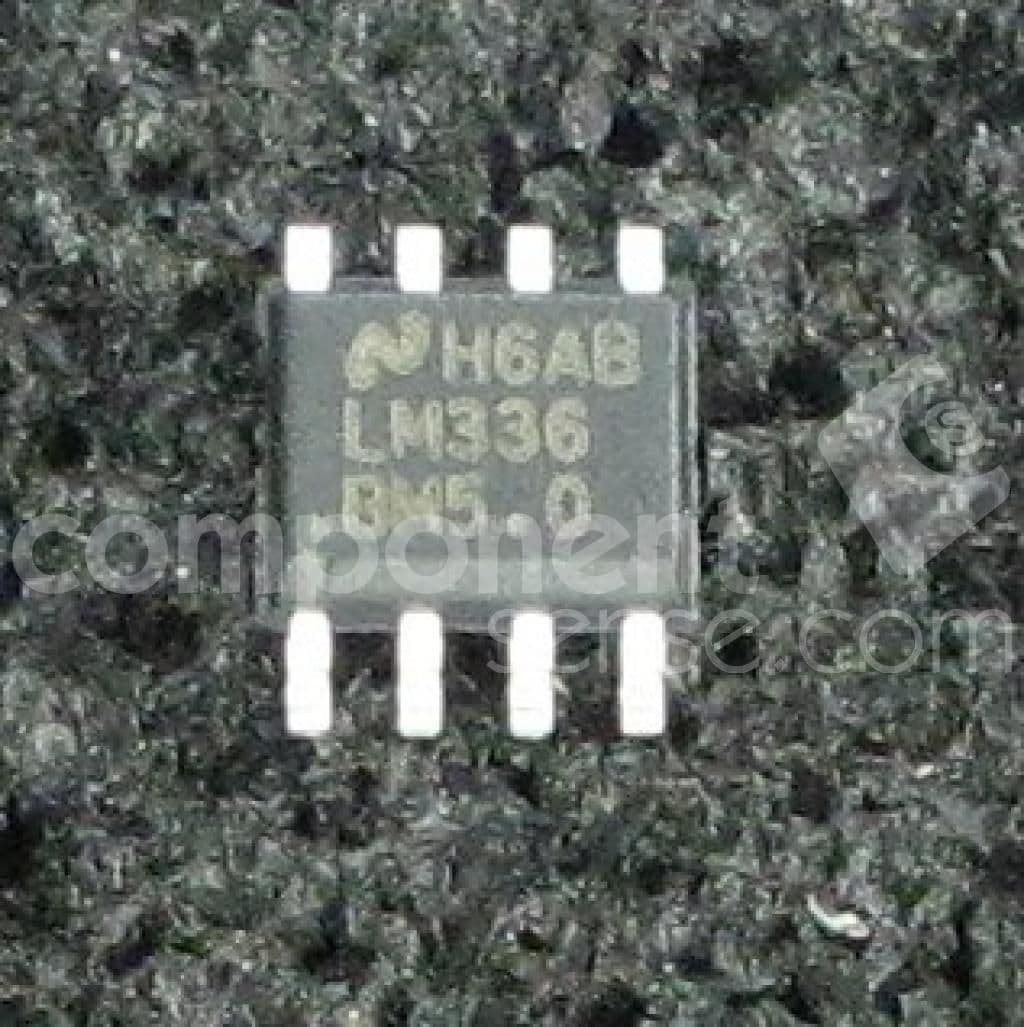

Product Images
