Fixed voltage reference diode with a 2.49V output, suitable for through-hole mounting in a TO-92 package. Features a 400µA supply current and a 10mA maximum output current. Operates within a 0°C to 70°C temperature range with a 2% tolerance. Maximum input voltage is 2.5V.
PackageTO-92
Current400uA
Current Rating10A
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LM336BZ-2.5/NOPB technical specifications.
General
Package/Case
TO-92
Cathode Current
400uA
Current Rating
10A
Height
5.2mm
Lead Free
Contains Lead
Length
5.2mm
Max Input Voltage
2.5V
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Output Current
10mA
Max Output Voltage
2.49V
Min Output Voltage
2.49V
Mount
Through Hole
Number of Channels
1
Output Current
10mA
Output Type
Fixed
Output Voltage
2.49V
Packaging
Bulk
Radiation Hardening
No
Reach SVHC Compliant
No
Reference Type
Shunt, Fixed
Reference Voltage
2.49V
RoHS Compliant
Yes
Supply Current
400uA
Tolerance
2%
Weight
0.016oz
Width
4.19mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM336BZ-2.5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM336BZ-2.5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

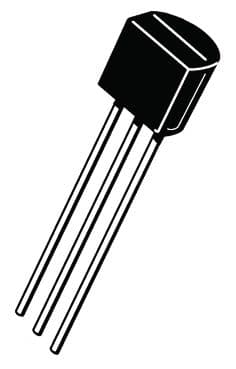

Product Images
