Dual synchronous step-down DC-DC converter, ideal for power management applications. Features dynamic voltage scaling and I²C interface for flexible control. Operates from 2.7V to 5.5V input, delivering 2.8V fixed output at up to 600mA per channel. Achieves 90% efficiency with a low quiescent current of 600µA. Packaged in a compact 16-WSON (5mm x 4mm x 0.8mm) for surface mounting, operating across a -30°C to 85°C temperature range. RoHS compliant and lead-free.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3370SD-3416/NOPB technical specifications.
General
| Efficiency | 90% |
| Features | I²C |
| Height | 0.8mm |
| Lead Free | Lead Free |
| Length | 5mm |
| Max Input Voltage | 5.5V |
| Min Input Voltage | 2.7V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Output Current | 600mA |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Operating Supply Current | 600mA |
| Operating Supply Voltage | 5.5V |
| Output Current | 600mA |
| Output Type | Fixed |
| Output Voltage | 2.8V |
| Packaging | Tape and Reel |
| Quiescent Current | 600uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Synchronous Rectifier | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM3370SD-3416/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3370SD-3416/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

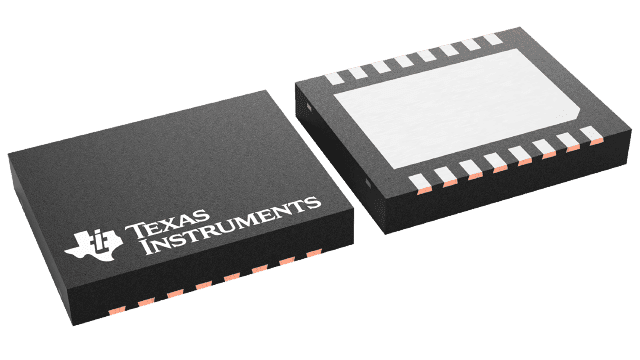

Product Images
