Buck LED driver IC featuring 75V maximum input voltage and 1.5A maximum output current. This surface mount component operates with PWM dimming and achieves up to 96% efficiency. It supports an operating frequency range of 10 kHz to 1 MHz and is housed in a 14-HTSSOP package. The device offers adjustable output voltage up to 75V and operates across a temperature range of -40°C to 125°C.
Frequency1MHz
PackageHTSSOP
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM3406HVMHX/NOPB technical specifications.
General
Package/Case
HTSSOP
Dimming
PWM
Efficiency
96%
Frequency
1MHz
Height
0.9mm
Lead Free
Lead Free
Length
5mm
Max Input Voltage
75V
Min Input Voltage
6V
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
1.5A
Max Supply Current
1.2mA
Max Supply Voltage
75V
Min Supply Voltage
6V
Mount
Surface Mount
Number of Outputs
1
Operating Frequency
10 kHz to 1 MHz
Output Current
1.5A
Output Current per Channel
1.5A
Output Type
Adjustable
Output Voltage
75V
Package Quantity
2500
Packaging
Tape and Reel
Quiescent Current
1.2mA
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Width
4.4mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM3406HVMHX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM3406HVMHX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

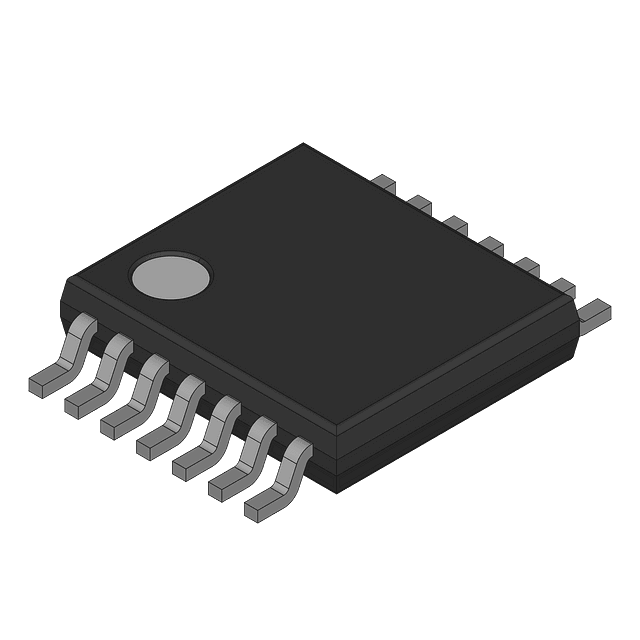

Product Images
