Positive fixed output linear voltage regulator with a 5V nominal output voltage and 1A maximum output current. Features a 2% output voltage accuracy and a 2V dropout voltage. Operates with a maximum input voltage of 35V and a minimum input voltage of 7.5V. Packaged in a TO-220 case for through-hole mounting, with an operating temperature range of 0°C to 125°C. Offers a 70dB Power Supply Rejection Ratio (PSRR).
PackageTO-220
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340AT-5.0/NOPB technical specifications.
General
Accuracy
2%
Package/Case
TO-220
Dropout Voltage
2V
Height
8.89mm
Length
10.16mm
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Max Output Voltage
5V
Max Supply Voltage
35V
Min Supply Voltage
7.5V
Mount
Through Hole
Nominal Output Voltage
5V
Nominal Supply Current
8mA
Number of Channels
1
Number of Outputs
1
Number of Regulators
1
Output Configuration
Positive
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Output Voltage Accuracy
2%
Packaging
Rail/Tube
Polarity
Positive
Power Supply Rejection Ratio (PSRR)
70dB
Quiescent Current
6mA
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Termination
Through Hole
Thickness
4.572mm
Tolerance
4%
Weight
0.08113oz
Width
4.7mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM340AT-5.0/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM340AT-5.0/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

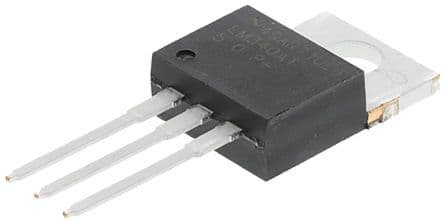

Product Images
