Fixed 5V positive linear voltage regulator, offering 1A output current with 2% accuracy. Features a 2V dropout voltage and supports a maximum input voltage of 35V. Designed for through-hole mounting in a TO-3-2 package, operating from 0°C to 125°C. Includes 1 regulator with a quiescent current of 8mA.
PackageTO-3-2
MountingThrough Hole
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LM340K-5.0 technical specifications.
General
Accuracy
2%
Package/Case
TO-3-2
Dropout Voltage
2V
Height
8.94mm
Lead Free
Contains Lead
Length
38.94mm
Max Input Voltage
35V
Min Input Voltage
7.5V
Max Operating Temperature
125°C
Min Operating Temperature
0°C
Max Output Current
1A
Mount
Through Hole
Number of Outputs
1
Number of Regulators
1
Output Current
1A
Output Type
Fixed
Output Voltage
5V
Package Quantity
50
Packaging
Tray
Polarity
Positive
Quiescent Current
8mA
RoHS Compliant
No
Thickness
8.6mm
Width
25.4mm
Compliance
RoHS
Not Compliant
Datasheet
Texas Instruments LM340K-5.0 Datasheet
Download the complete datasheet for Texas Instruments LM340K-5.0 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

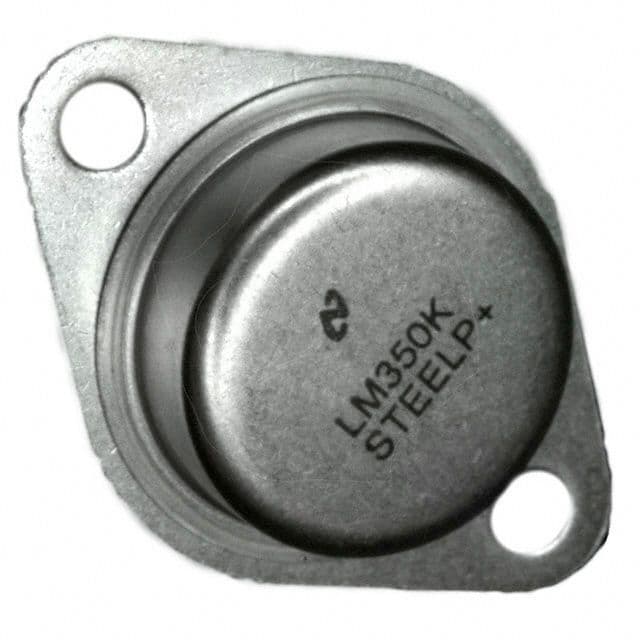

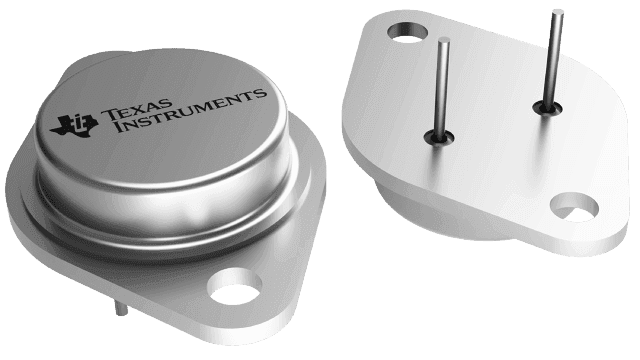

Product Images
